The Peacock Project

Creating a site specific mosaic floor tile mural from start to finish.

<<previous page 2 of 4 next>>

The sticks are employed to keep the slab of clay a uniform thickness as it is rolled out. 1cm thickness is adequate.  The thicker the clay the lesser the chance for wrapping during drying..

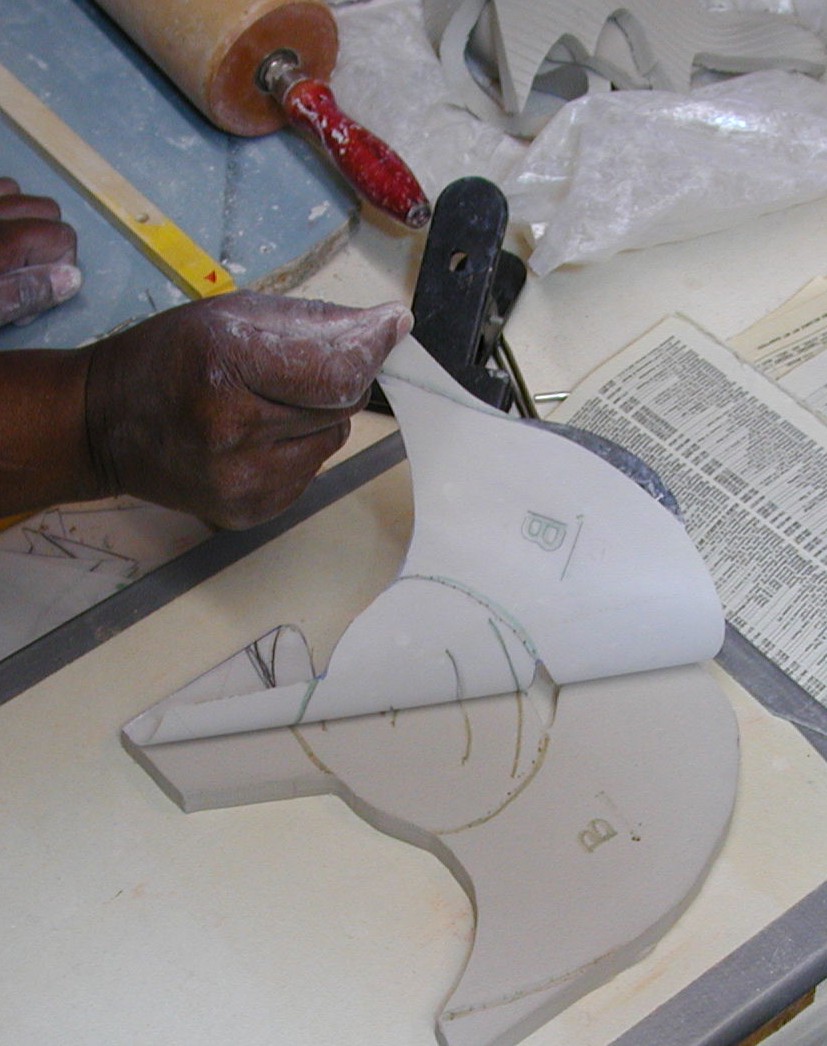

Tile is cutout; grout lines are transferred from pattern to clay. Tracing around the pattern pieces with a cutting tool yields the shape of each tile.

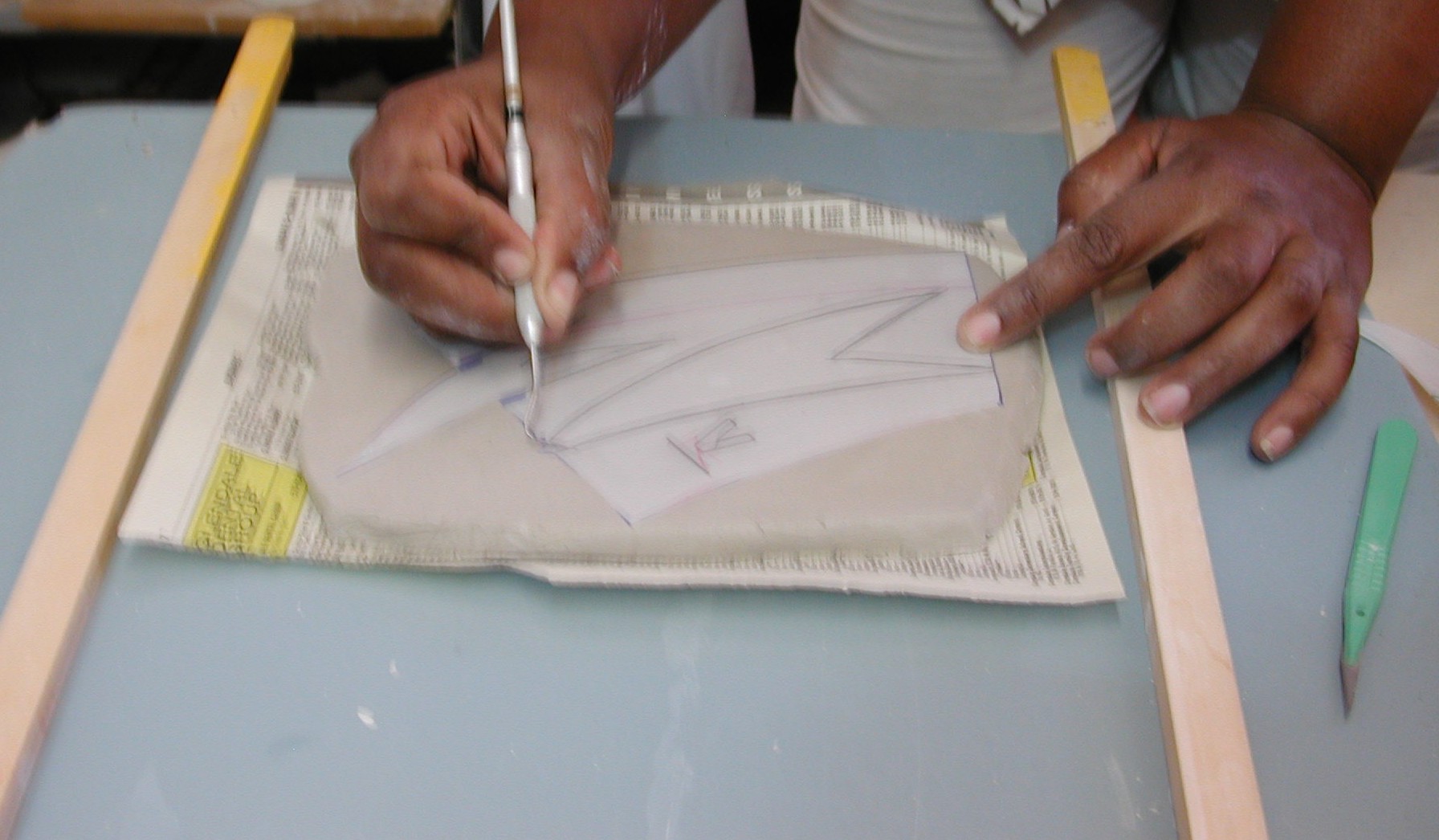

The grout lines being transferred to surface of clay is simple process of tracing.

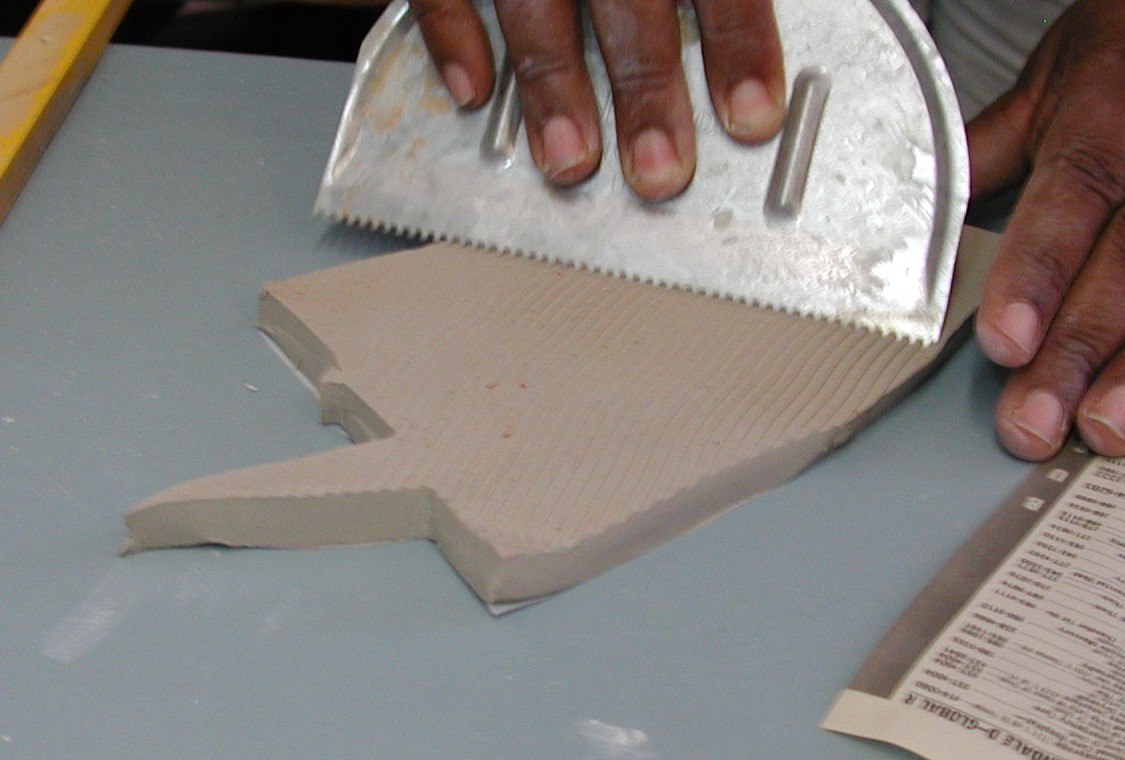

A notched rib is used to texture the tile bottom; that increases the surface area for better adhesion.  Note that tiles are dried between sections of plasterboard; the sheet-rock pulls moisture from wet clay. Changing the plasterboard often aids drying and also keeps mold from growing on the sheet-rock..

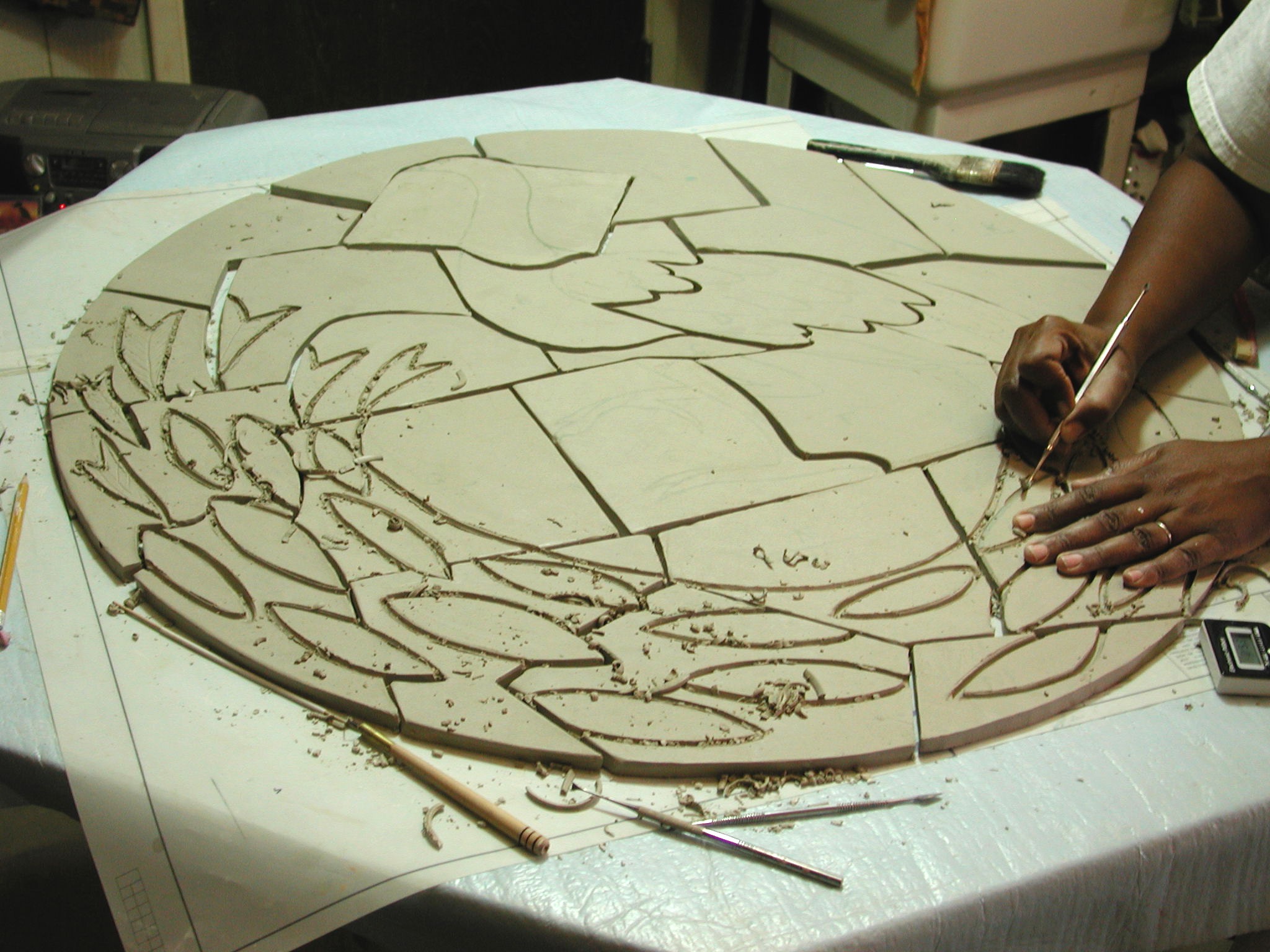

Cut pieces fit together much like a puzzle

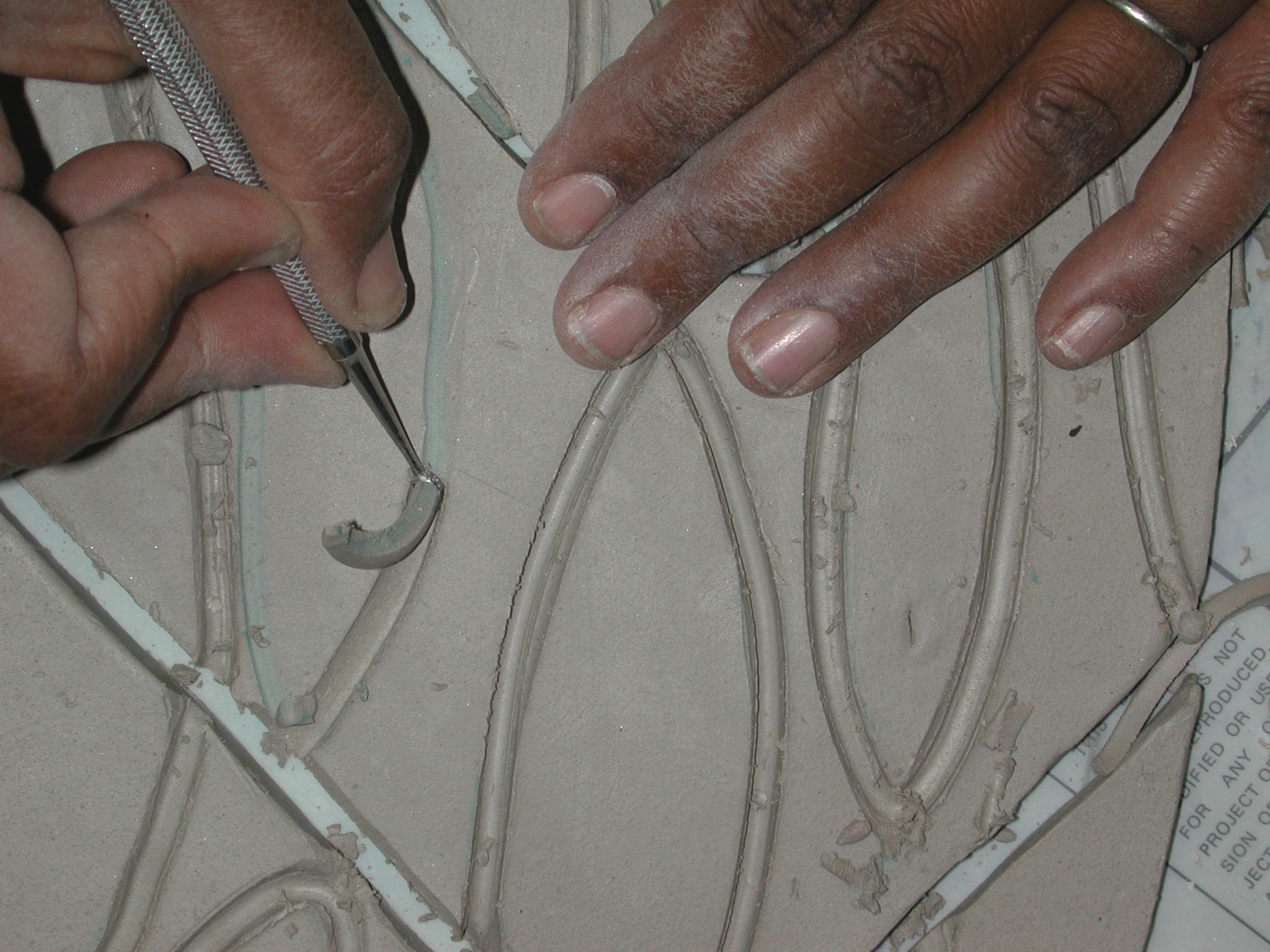

Grooves for grout channels are hollowed out.
